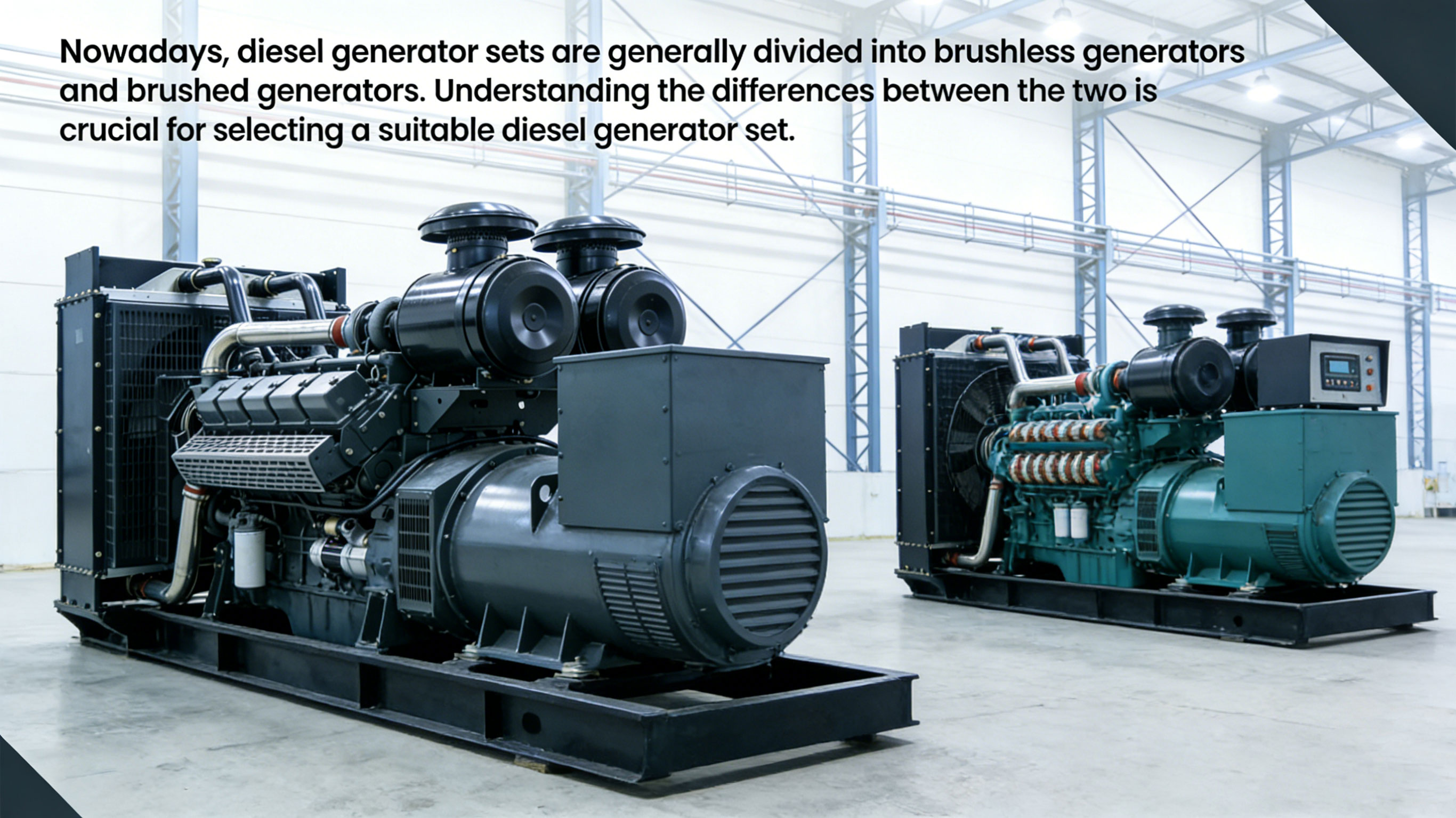

The fundamental difference between brushed and brushless generators lies in the way they transmit electrical current and excite the magnetic field, which directly determines their structural design and operational characteristics.
A brushless generator mainly adopts a brushless excitation structure (without carbon brushes and commutators) for power generation. Under the same operating conditions, the brushless alternator transmits current through the surface of hardware components and relies on an electronic commutation system (including electronic governors, rectifiers, and inverters) to control the direction and stability of the current. Its excitation system usually consists of an exciter (small brushless generator), a rotating rectifier, and a main generator. The exciter generates alternating current, which is converted into direct current by the rotating rectifier and then supplied to the rotor winding of the main generator to generate a rotating magnetic field, thereby inducing alternating current in the stator winding.
In contrast, a brushed alternator relies on brushes (usually carbon brushes) and commutators to conduct electricity and complete commutation. The brushes serve as electrical contacts, sliding on the surface of the commutator to transfer the current generated by the generator to the external circuit or the excitation winding. Specifically, the rotor winding of the brushed generator is connected to the commutator, and the brushes are in close contact with the commutator. When the rotor rotates, the brushes slide along the commutator segments to continuously change the direction of the current in the external circuit, ensuring the output of stable direct current (or converting alternating current through additional rectification components).
In terms of structure, the brushless generator has a relatively simple mechanical structure (without vulnerable parts such as brushes and commutators), but its electronic control system is more complex. The high-performance electronic governor of the brushless generator requires overall control of the single-chip microcomputer control program design, circuit design, complex processing technology, and other processes, which leads to a significantly higher price compared to brushed generators.
1. Maintenance and Service Life
Brushless generator sets are easier to maintain, repair, and replace. Since they do not have wearing parts such as carbon brushes and commutators, there is no need for regular replacement of brushes, adjustment of brush pressure, or cleaning of commutator surface carbon deposits. This not only reduces maintenance workload and costs but also extends the overall service life of the generator. Under normal operating conditions, the service life of a brushless generator can reach 10,000 hours or more.
In contrast, brushed generators have higher wear and friction due to the sliding contact between brushes and commutators. The carbon brushes will gradually wear out during operation and need to be regularly inspected and replaced (usually every 500-2000 hours, depending on the operating environment and load). At the same time, the commutator is prone to wear, oxidation, and sparking, which not only affects the stability of the generator but also shortens its service life. Generally, the service life of a brushed generator is 3000-8000 hours, which is significantly shorter than that of a brushless generator.
2. Noise Performance
The brushless diesel generator set has the function of low noise and even no obvious operating noise. The absence of sliding friction between brushes and commutators eliminates the friction noise and spark noise generated by the contact of these parts. In addition, the optimized structural design of the brushless generator also reduces mechanical vibration and noise, making it more suitable for noise-sensitive scenarios such as residential areas, hospitals, and precision equipment workshops.
Brushed generators, on the other hand, produce relatively high noise during operation. The sliding friction between the brushes and the commutator will generate continuous friction noise, and sparking between the brushes and the commutator may also produce sharp noise. Especially under high load conditions, the noise will be further amplified, which is not suitable for occasions with strict noise requirements.
3. Heat Generation and Fault Probability
The brushless structure effectively reduces the risk of overheating caused by unexpected faults. Since there is no contact resistance between brushes and commutators, the overall resistance of the brushless generator is small, and the heat generated during operation is relatively low. In addition, the electronic control system of the brushless generator can monitor the operating temperature in real time and adjust the working state in time to avoid overheating damage to components.
For brushed generators, due to their structural characteristics, the contact resistance between the brushes and the commutator is relatively large, which leads to large overall resistance of the motor and easy heat generation during operation. If the brush pressure is improper, the commutator surface is worn, or the ventilation and heat dissipation system fails, it is easy to cause overheating of the generator, which may lead to damage to the brushes, commutators, windings, and other components, and even cause serious faults such as generator burnout.
4. Power Output and Efficiency
The output power and energy conversion efficiency of brushed generators are relatively low. The sliding friction between brushes and commutators will cause certain energy loss, and the contact resistance will also reduce the power transmission efficiency. Generally, the energy conversion efficiency of brushed generators is between 70%-85%, and their output power is mostly suitable for small and medium-sized load scenarios (usually below 100kW).
Brushless generators have higher output power and energy conversion efficiency. Without the energy loss caused by brush friction and contact resistance, the energy conversion efficiency of brushless generators can reach 85%-95%. At the same time, the optimized design of the stator and rotor of the brushless generator allows it to output larger power, which is suitable for large-scale load scenarios (from several hundred kW to several thousand kW) such as industrial production, large-scale construction sites, and emergency power supply for large buildings.
5. Pricing
Under the same generator power, the price of a brushless generator is significantly higher than that of a brushed generator. The main reason is that the brushless generator requires a more complex electronic control system (such as electronic governors, rotating rectifiers, and excitation systems) and higher precision processing technology, which increases the production cost. Generally, the price of a brushless generator is 1.5-3 times that of a brushed generator with the same power.
6. Insulation Level
The insulation level of brushless generators is higher than that of brushed generators. Since the brushless generator does not have exposed electrical contacts such as brushes and commutators, its internal winding and electrical components can adopt a more comprehensive insulation protection design, which can effectively prevent insulation damage caused by dust, moisture, and other factors. The insulation level of brushless generators is usually Class F or Class H, which can adapt to harsh operating environments such as high temperature and high humidity.
The brushed generator has exposed brushes and commutators, which are easily affected by the external environment. Dust, moisture, and other impurities can easily enter the contact surface, leading to reduced insulation performance and even short circuits. Therefore, the insulation level of brushed generators is usually Class B or Class F, which is lower than that of brushless generators.
7. Output Voltage Stability
The output voltage of brushless generators is relatively more stable than that of brushed generators. The electronic control system of the brushless generator can accurately adjust the excitation current in real time according to the changes of the external load and the grid voltage, thereby ensuring that the output voltage fluctuation range is small (usually within ±1%). This stable voltage output is crucial for precision equipment, electronic instruments, and other equipment that are sensitive to voltage.
The output voltage of brushed generators is easily affected by the wear of brushes, the change of contact resistance, and the fluctuation of load. The voltage fluctuation range is relatively large (usually within ±3%-±5%), which may affect the normal operation of electrical equipment that requires high voltage stability.
III. Summary and Selection Suggestions
In summary, brushed generators and brushless generators have their own characteristics and applicable scenarios. Brushed generators have the advantages of low price and simple structure, which are suitable for small-scale, low-demand, and low-budget scenarios such as small workshops, household emergency power supply, and temporary construction sites.
Brushless generators have the advantages of easy maintenance, long service life, low noise, high efficiency, stable voltage output, and high insulation level. They are suitable for large-scale, high-demand, and long-term continuous operation scenarios such as industrial production, large-scale construction projects, hospitals, data centers, and emergency power supply for important buildings.
Selecting the appropriate generator according to actual needs can greatly save costs and ensure the stability and reliability of power supply. It is recommended to comprehensively consider factors such as load size, operating environment, maintenance conditions, service life requirements, and budget when selecting, so as to choose the most suitable generator type.
